| TDS-12.0H |
|
|
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,double cone brake.
- Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
|
|
|
|
|
| SPECIFICATION |
| Line pull:5,442kgs/12,000lbs |
| Motor: 12V/24V series wound |
| Gear Train: Three stage |
| Gear Ratio: 216:1 |
| Freespooling Clutch: Rotating ring gear |
| Wire Rope Size: Φ3/8"×90'(Φ9.5mm×27.4m) |
| Wire Rope Type: Aircraft A7×19 |
| Drum Size: Φ2.5"×9"(Φ63.5mm×229mm) |
|
| LINE PULL |
| Layer of Wire Rope |
Max Line Pull |
| 1 |
12,000lbs/5,442kgs |
| 2 |
9,789lbs/4,445kgs |
| 3 |
8,273lbs/3,760kgs |
| 4 |
7,199lbs/3,255kgs |
|
| LINE SPEED AND AMP DRAW(1st layer of rope on the drum) |
| Load |
Line Speed |
AMP Draw(12V) |
AMP Draw(24V) |
| No Load |
31FPM/9.5MPM |
60 |
60 |
| 2,000lbs/907kgs |
13.9FPM/4.2MPM |
116 |
87 |
| 4,000lbs/1,814kgs |
11.5FPM/3.5MPM |
150 |
121 |
| 6,000lbs/2,722kgs |
9.9FPM/3.0MPM |
198 |
167 |
| 8,000lbs/3,650kgs |
8.6FPM/2.6MPM |
240 |
190 |
| 9,500lbs/4,309kgs |
7.9FPM/2.4MPM |
268 |
229 |
| 11,000lbs/5,000kgs |
7.2FPM/2.2MPM |
300 |
244 |
| 12,000lbs/5,442kgs |
5.9FPM/1.8MPM |
320 |
252 |
|
| |
| DIMENSIONS(mm) |
| |
|
| |
| STANDARD ACCESSORIES |
| Controller TA-0906 |
| Wire Rope With Hook |

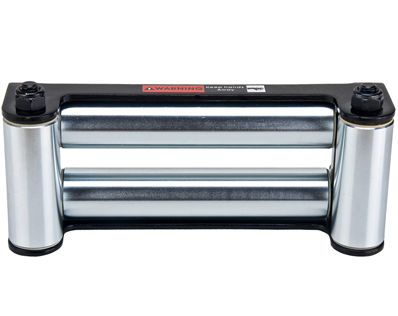

| 4 Way Roller Fairlead TA-0903 |
| Control Unit TA-0909/12V TA-0909/24V |
| Mounting Hardware |
Handsaver Strap
|
|
| |
| PACKAGE |
| Winch Weight : 43kgs/94.6lbs |
| Gross Weight : 45kgs/99lbs |
| Box Dimension : 647×198×410 mm(25.5"×7.8"×16.1") |
| |
|
| |
|
|
