| TDS-9.5HC SR |
|
|
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,double cone brake.
- Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
|
|
|
|
|
| SPECIFICATION |
| Line pull:4,309kgs/9,500lbs |
| Motor: 12V/5.2HP 24V/3.2HP |
| Gear Train: Three stage |
| Gear Ratio: 156:1 |
| Freespooling Clutch: Rotating ring gear |
| Synthetic Rope Size: Φ11/31"×90'(Φ9.0mm×27m) |
| Drum Size: Φ2.5"×9"(Φ63.5mm×229mm) |
|
|
| LINE PULL |
| Layer of Wire Rope |
Max Line Pull |
| 1 |
9,500lbs/4,309kgs |
| 2 |
7,800lbs/3,500kgs |
| 3 |
6,550lbs/2,977kgs |
| 4 |
5,700lbs/2,578kgs |
|
| LINE SPEED AND AMP DRAW(1st layer of Synthetic rope on the drum) |
| Load |
Line Speed |
AMP Draw(12V) |
AMP Draw(24V) |
| No Load |
59FPM/18MPM |
60 |
40 |
| 2,000lbs/907kgs |
15.4FPM/4.7MPM |
150 |
116 |
| 4,000lbs/1,814kgs |
13.1FPM/4.0MPM |
187 |
168 |
| 6,000lbs/2,722kgs |
11.2FPM/3.4MPM |
246 |
220 |
| 8,000lbs/3,650kgs |
9.5FPM/2.9MPM |
314 |
260 |
| 9,500lbs/4,309kgs |
8.2FPM/2.5MPM |
370 |
300 |
|
| |
| DIMENSIONS(mm) |
| |
|
| |
| STANDARD ACCESSORIES |
| Controller TA-0906 |
| Synthetic Rope With Hook |

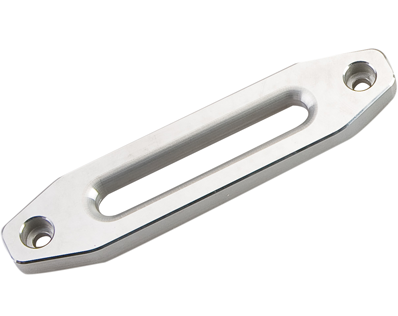

| Hawse fairlead TA-0921 |
| Control Unit TA-0910/12V TA-0910/24V |
| Mounting Hardware |
Handsaver Strap
|
|
| |
| PACKAGE |
| Winch Weight : 33kgs/72.6lbs |
| Gross Weight : 35kgs/77lbs |
| Box Dimension : 647×198×410 mm(25.5"×7.8"×16.1") |
| |
|
| |
|
|
