| BULL-9.5 SR |
|
|
-Series wound DC motor with high torque and excellent speed.
-Three-stage planetary gear set provides high transmission efficiency.
-Patent powerful double-cone brake with zero sliding distance.
-Patent clutch is easy to operate when rolling in and out.
-Waterproof rating: IP68 |
|
|
|
|
| SPECIFICATION |
| Line pull: 9,500lbs/4,309kgs |
| Motor: DC 12V/24V series wound |
| Gearing: Three stage planetary |
| Gear Ratio: 156:1 |
| Brake: 100% full load double cone braking |
| Synthetic Rope: 11/31"×90'(9mm×27m) |
| Dimensions: 24.4" L×6.29" D×11.51" H (620mm L×160mm D×292.5〃mm H) |
Drum Diameter: 63.5mm×229mm |
| LINE PULL |
| Layer of Wire Rope |
Max Line Pull |
| 1 |
95,00lbs/4,309kgs |
| 2 |
7,800lbs/3,500kgs |
| 3 |
6,550lbs/2,977kgs |
| 4 |
5,700lbs/2,578kgs |
|
|
|
| LINE SPEED AND AMP DRAW(1st layer of rope on the drum) |
| Load |
Line Speed |
AMP Draw(12V) |
AMP Dram（24V） |
| No Load |
64FPM/19.5MPM |
60 |
40 |
| 2,000lbs/907kgs |
15.4FPM/4.7MPM |
150 |
106 |
| 6,000lbs/2,722kgs |
11.2FPM/3.4MPM |
246 |
187 |
| 9,500lbs/4,309kgs |
8.2FPM/2.5MPM |
370 |
259 |
|
| |

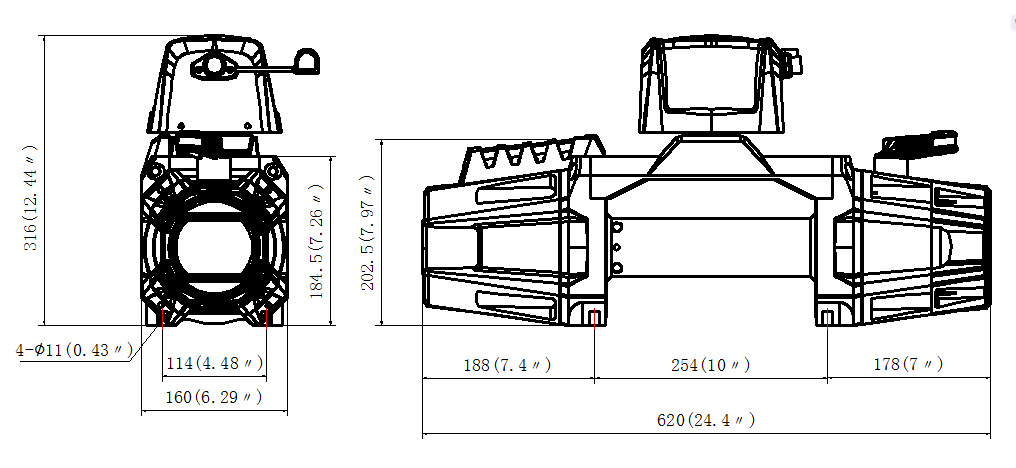

| DIMENSIONS(mm) |
| |
|
| |
| STANDARD ACCESSORIES |
| Controller |
| Control Unit |
| Mounting Hardware |
| Handsaver Strap |
| Synthetic Rope |
| Hawse Fairlead |
| Hook |
| |
| PACKAGE |
| Winch weight :36kgs/79.4lbs |
| Gross Weight :37.3kgs/82.2lbs |
| Box Dimension :655×193×445mm(25.8〃x7.6〃x17.5〃) |
| |
|
| |
|
|
