| ORCA 11.0 |
|
|
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,double cone brake.
- Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
|
|
|
|
|
| SPECIFICATION |
| Line pull:4,990kgs/11,000lbs |
| Motor: 12V/24V series wound |
| Brake: 100% full load double cone braking |
| Gear Ratio: 206:1 |
| Wire Rope Size:Φ9.5mmx27M(Φ3/8"x90') |
|
| LINE PULL |
| Layer of Wire Rope |
Max Line Pull |
| 1 |
11,000lbs/4990kgs |
| 2 |
8647lbs/3922kgs |
| 3 |
7123lbs/3230kgs |
| 4 |
6056lbs/2747kgs |
|
| LINE SPEED AND AMP DRAW(1st layer of rope on the drum) |
| Load |
Line Speed |
AMP Draw(12V) |
AMP Draw(24V) |
| No Load |
36FPM/11MPM |
65 |
40 |
| 4,000lbs/1,814kgs |
19.7FPM/6MPM |
170 |
90 |
| 9,500lbs/4,309kgs |
6.2FPM/1.9MPM |
310 |
145 |
| 11,000lbs/4,990kgs |
3.7FPM/1.13MPM |
395 |
205 |
|
| |
| DIMENSIONS(mm) |
 |
| STANDARD ACCESSORIES |

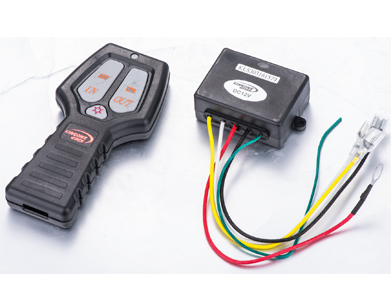

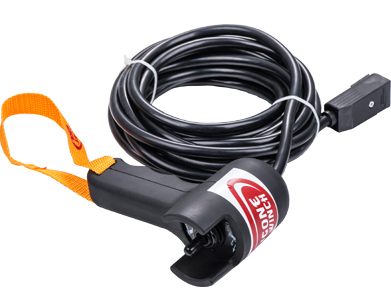

| Controller |
| Wire Rope With Hook |
| 4 Way Roller Fairlead |
| Control Unit |
| Mounting Hardware |
| Handsaver Strap |
|
| |
| PACKAGE |
| Winch weight : 44kgs |
| Gross Weight : 46kgs |
| Box Dimension : 647×198×410 mm(25.5"×7.8"×16.1") |
| |
|
| |
|
|
