| UTV-4500 |
|
|
- Permanent magnet motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,flat brake.
- Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
|
|
|
|
|
| SPECIFICATION |
| Line pull:2,040kgs/4,500lbs |
| Motor: 1.8HP |
| Brake: 100% full load double cone braking |
| Gear Ratio: 187:1 |
Wire Rope Size: Φ5.5mm×15M
|
|
| LINE PULL |
| Layer of Synthetic Rope |
Max Line Pull |
| 1 |
4,500lbs/2,040kgs |
| 2 |
3,850lbs/1,746kgs |
| 3 |
3,350lbs/1,519kgs |
| 4 |
2,800lbs/1,270kgs |
|
| LINE SPEED AND AMP DRAW(1st layer of Synthetic Rope on the drum) |
| Load |
Line Speed |
AMP Draw(12V) |
AMP Draw(24V) |
| No Load |
19FPM/5.8MPM |
25 |
13 |
| 2,500lbs/1,140kgs |
9FPM/2.7MPM |
210 |
120 |
| 4,500lbs/2,040kgs |
4.9FPM/1.5MPM |
285 |
155 |
|
| |

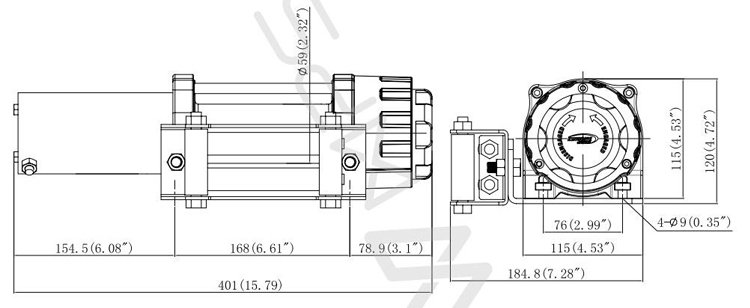

| DIMENSIONS(mm) |
 |
| STANDARD ACCESSORIES |

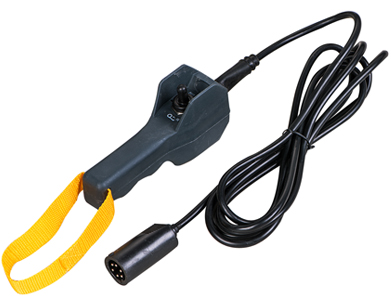

| Controller |
| 4 Way Roller Fairlead |

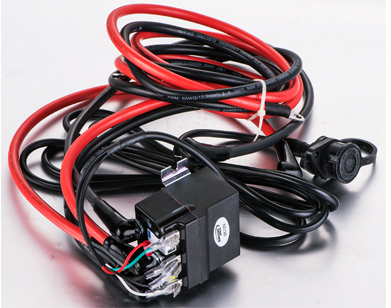

| Control Unit |
| Handsaver Strap |
| Base Frame |
| Mounting Hardware |
| Wire Rope With Hook |
|
| |
| PACKAGE |
| Winch Weight : 15kgs/33.1lbs |
| Gross Weight : 17kgs/37.5lbs |
| Box Dimension : 430×225×225 mm(16.9"×8.9"×10.1") |
| |
|
| |
|
|
