| KHD-10 |
|
|
- Smooth running over the entire speed range.
- Highly efficient, constant operating torque motor.
- Rotating ring gear freespooling clutch is a pull and turn design for rapid wire rope payout.
- Freespooling. Power in/out. Mechanical lock. Stainless steel tie bars . Reversible mounting.
- Variable speed hydraulic winch.
|
|
|
|
|
| SPECIFICATION |
| Line pull:756kgs/1,667lbs (high) 4,535kgs/10,000lbs(low) |
| Operation Pressure: 175bar/2,537psi |
| Max Oil Flow: 15.9g/min(60l/min) |
| Gear Ratio: Free 1:1(HIGH) 6:1(LOW) |
| Wire Rope Size: Φ3/8"×90'(Φ9.5mm×27m) |
| Synthetic Rope Size: Φ11/28"×90'(Φ10.0mm×27m) |
| Drum Size: Φ2.5"×8.4"(Φ63.5mm×215mm) |
| Gear Train: Planetary |
|
| LINE PULL AND LINE SPEED(1st layer of rope on the drum)(please use under when the max line pull is 10,000lbs,pressure is 175 bar and flow is 30l/min.) |
| Layer of Wire Rope |
Max Line Pull(1:1) |
Line Speed(1:1) |
Max Line Pull(6:1) |
Line Speed(6:1) |
| 1 |
1,667Lbs/756Kgs |
134.5FPM/41MPM |
10,000Lbs/4,535Kgs |
21.3FPM/6.5MPM |
| 2 |
1,389Lbs/630Kgs |
161FPM/49MPM |
8,320Lbs/3,770Kgs |
26.2FPM/8MPM |
| 3 |
1,212Lbs/550Kgs |
183.7FPM/56MPM |
7,120Lbs/3,330Kgs |
30.5FPM/9.3MPM |
| 4 |
1,058Lbs/480Kgs |
209FPM/64MPM |
6,200Lbs/2,812Kgs |
36.1FPM/11MPM |
| 5 |
922Lbs/450Kgs |
223FPM/68MPM |
5,500Lbs/2,490Kgs |
37FPM/11.3MPM |
|
| |
| DIMENSIONS(mm) |
| |
|
| |
| STANDARD ACCESSORIES |

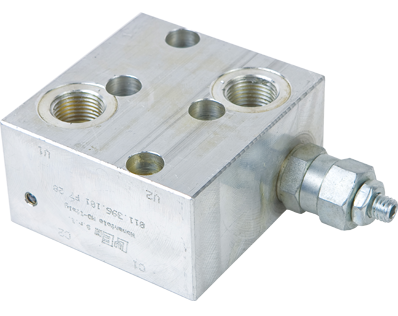

| Over Center Valve TA-0918 |
| Coupling TA-0928 |
| Mounting Hardware |
Handsaver Strap
| 4 Way roller fairlead TA-0903 |
| Wire rope TA-0102 |
| hook TA-0401 |
|
|
| OPTIONAL ACCESSORIES |
| High Pressure Hose TA-0929 |
| Base Plate TA-0927 |
| |
| PACKAGE |
| Winch weight : 43kgs/94.8lbs |
| Gross Weight :48kgs/105.8lbs |
| Box Dimension : 570×245×305 mm(22.4"×9.6"×12") |
| |
|
| |
|
|
