| TDS-20.0 |
|
|
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,double cone brake.
- Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
|
|
|
|
|
| SPECIFICATION |
| Working Load:9072kgs/20,000lbs |
| Wire Rope Size: Φ8/17"×83'(Φ12mmx25m) |
| Gear Ratio: 315:1 |
| Motor: 12V/6.2HP 24V/4.0HP |
|
| LINE PULL |
| Layer of Wire Rope |
Max Line Pull |
| 1 |
20,000lbs/9,072kgs |
| 2 |
15,380lbs/6,976kgs |
| 3 |
13,100lbs/5,942kgs |
| 4 |
11,300lbs/5,125kgs |
|
| LINE SPEED AND AMP DRAW(1st layer of rope on the drum) |
| Load |
Line Speed |
AMP Draw(12V) |
AMP Draw(24V) |
| No Load |
26.2FPM/8MPM |
60 |
30 |
| 2,000lbs/907kgs |
23.3FPM/4.2MPM |
100 |
60 |
| 4,000lbs/1,814kgs |
10.5FPM/3.19MPM |
125 |
85 |
| 6,000lbs/2,721kgs |
9.2FPM/2.8MPM |
155 |
110 |
| 8,000lbs/3,628kgs |
8.2FPM/2.5MPM |
180 |
130 |
| 10,000lbs/4,536kgs |
6.6FPM/2.0MPM |
215 |
155 |
| 12,500lbs/5,670kgs |
6.3FPM/1.92MPM |
250 |
165 |
| 14,000lbs/6,350kgs |
5.9FPM/1.79MPM |
270 |
175 |
| 16,500lbs/7,484kgs |
5.5FPM/1.67MPM |
290 |
190 |
| 18,000lbs/8,165kgs |
4.6FPM/1.41MPM |
320 |
220 |
| 19,000lbs/8,618kgs |
3.8FPM/1.16MPM |
340 |
240 |
| 20,000lbs/9,072kgs |
3.2FPM/0.97MPM |
360 |
270 |
|
| |

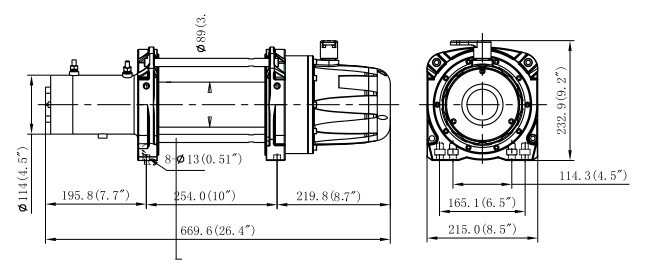

| DIMENSIONS(mm) |
| |
|
| |
| STANDARD ACCESSORIES |
| Controller TA-0906 |

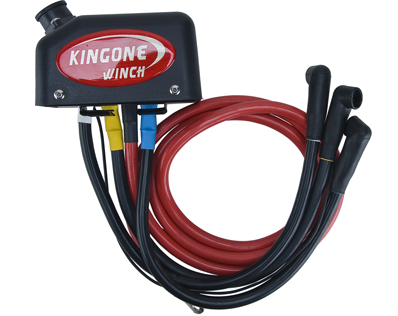

| Control Unit TA-0911 |
| Mounting Hardware |
| Handsaver Strap |
| 4 Way Roller Fairlead TA-0903 |
| Wire Rope TA-0112 |
| Hook TA-0405 |
| |
| PACKAGE |
| Winch weight : 63kgs/138.6lbs |
| Gross Weight : 65kgs/143 lbs |
| Box Dimension : 710×255×450 mm(28"×10"×17.7") |
| |
|
| |
|
|
