| ATV-3000C |
|
|
- Permanent magnet motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,flat brake.
- Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
|
|
|
|
|
| SPECIFICATION |
| Line pull:1,363kgs/3,000lbs |
| Motor: 12V/1.0HP 24V/0.8HP |
| Gear Train: Three stage |
| Gear Ratio: 166:1 |
| Freespooling Clutch: Rotating ring gear |
| Wire Rope Size: Φ3/16"×50'(Φ4.8mm×15m) |
| Wire Rope Type: Aircraft A7×19 |
| Drum Size: Φ2.2"×3.4"(Φ55mm×87.5mm) |
|
| LINE PULL |
| Layer of Wire Rope |
Max Line Pull |
| 1 |
3,000lbs/1,363kgs |
| 2 |
2,590lbs/1,170kgs |
| 3 |
2,270lbs/1,030kgs |
| 4 |
2,030lbs/920kgs |
| 5 |
1,830lbs/830kgs |
|
| LINE SPEED AND AMP DRAW(1st layer of rope on the drum) |
| Load |
Line Speed |
AMP Draw(12V) |
AMP Draw(24V) |
| No Load |
24FPM/7.3MPM |
25 |
13 |
| 500lbs/230kgs |
19FPM/6MPM |
50 |
27 |
| 1,000lbs/450kgs |
15FPM/4.6MPM |
85 |
45 |
| 1,500lbs/680kgs |
13.5FPM/4.2MPM |
105 |
53 |
| 2,000lbs/900kgs |
11.4FPM/3.5MPM |
118 |
60 |
| 2,500lbs/1,140kgs |
10.2FPM/3.1MPM |
160 |
90 |
| 3,000lbs/1,363kgs |
8.2FPM/2.5MPM |
188 |
110 |
|
| |
| DIMENSIONS(mm) |
| |
|
| |
| STANDARD ACCESSORIES |

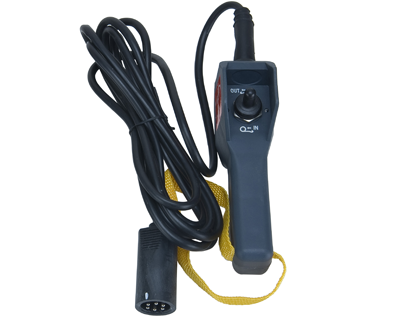

| Controller TA-0508 |

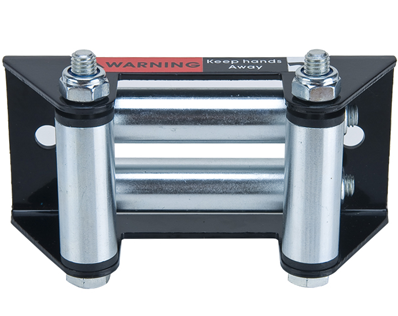

| 4 Way Roller Fairlead TA-0901 |
| Control Unit TA-0510 |
| Handsaver Strap |

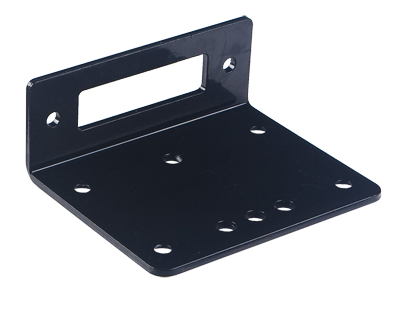

| Base Frame TA-0303 |
| Mounting Hardware |
| Wire Rope With Hook |
|
| |
| PACKAGE |
| Winch Weight : 11.66kgs/25.7lbs |
| Gross Weight : 13.63kgs/30lbs |
| Box Dimension : 390×209×235 mm(15.4"×8.2"×9.3") |
| |
|
| |
|
|
