Standard-TDS
TDS-9.5Hi

  • Heavy duty series wound motor delivers superior torque output and faster line speed.
  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
  • Automatic,double cone brake.
  • Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
  • Installation ,operation and maintenance with ease.

    Detailed Data:
    SPECIFICATION
    Line pull:4,309kgs/9,500lbs
    Motor: 12V/5.2HP 24V/3.2HP
    Gear Train: Three stage
    Gear Ratio156:1
    Freespooling Clutch: Rotating ring gear
    Wire Rope Size: Φ11/32"×100'(Φ8.7mm×30m)
    Wire Rope Type: Aircraft A7×19
    Drum Size: Φ2.5"×9"(Φ63.5mm×229mm)

    LINE PULL
    Layer of Wire Rope Max Line Pull
    1 9,500lbs/4,309kgs
    2 7,800lbs/3,500kgs
    3 6,550lbs/2,977kgs
    4 5,700lbs/2,578kgs

    LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
    Load Line Speed AMP Draw(12V) AMP Draw(24V)
    No Load 59FPM/18MPM 60 40
    2,000lbs/907kgs 15.4FPM/4.7MPM 150 116
    4,000lbs/1,814kgs 13.1FPM/4.0MPM 187 168
    6,000lbs/2,722kgs 11.2FPM/3.4MPM 246 220
    8,000lbs/3,650kgs 9.5FPM/2.9MPM 314 260
    9,500lbs/4,309kgs 8.2FPM/2.5MPM 370 300

    DIMENSIONS(mm)



    STANDARD ACCESSORIES
    Controller                         TA-0906
    Wire Rope With Hook

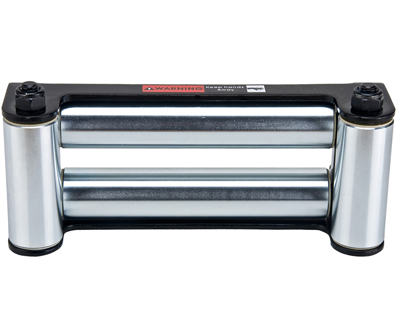

    4 Way Roller Fairlead       TA-0903
    Control Unit                      TA-0902/12V     TA-0902/24V
    Mounting Hardware
    Handsaver Strap


    PACKAGE
    Winch Weight : 44kgs/96.8lbs
    Gross Weight : 46kgs/101.2lbs
    Box Dimension : 647×198×410 mm(25.5"×7.8"×16.1")
