| TDS-13.0 |
|
|
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,double cone brake.
- Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
|
|
|
|
|
| SPECIFICATION |
| Line pull:5,897kgs/13,000lbs |
| Motor: 12V/6.0HP 24V/3.6HP |
| Gear Train: Three stage |
| Gear Ratio: 261:1 |
| Freespooling Clutch: Rotating ring gear |
| Synthetic Rope Size: Φ10mm×25M |
| Drum Size: Φ3.5"×8.1"(Φ89mm×206mm) |
|
| LINE PULL |
| Layer of Wire Rope |
Max Line Pull |
| 1 |
13,000lbs/5,897kgs |
| 2 |
10,475lbs/4,752kgs |
| 3 |
9,017lbs/4,091kgs |
| 4 |
7,915lbs/3,590kgs |
| 5 |
7,100lbs/3,220kgs |
|
| LINE SPEED AND AMP DRAW(1st layer of rope on the drum) |
| Load |
Line Speed |
AMP Draw(12V) |
AMP Draw(24V) |
| No Load |
24FPM/7.3MPM |
55 |
49 |
| 6,000lbs/2,722kgs |
6.6FPM/2.0MPM |
210 |
172 |
| 10,000lbs/4,536kgs |
4.0FPM/1.2MPM |
290 |
260 |
| 13,000lbs/5,897kgs |
2.6FPM/0.8MPM |
350 |
310 |
|
| |
| DIMENSIONS(mm) |
| |
|
| |
| STANDARD ACCESSORIES |
| Controller TA-0906 |
| Control Unit TA-0911 |
| Mounting Hardware |
| Handsaver Strap |
| Synthetic Rope TA-1107 |

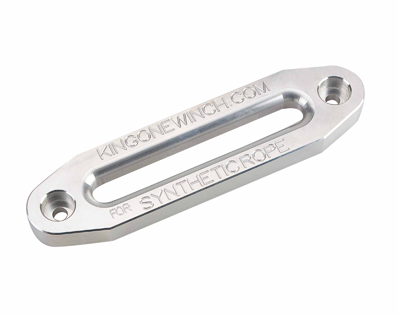

| Hawse Fairlead TA-0921 |
| Hook TA-0402 |
| |
| PACKAGE |
| Winch weight : 46.9kgs |
| Gross Weight : 54.2kgs |
| Box Dimension : 710×255×450 mm(28"×10"×17.7") |
| |
|
| |
|
|
