Standard-TDS
TDS-16.5 SR
  • Heavy duty series wound motor delivers superior torque output and faster line speed.
  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
  • Automatic,double cone brake.
  • Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
  • Installation ,operation and maintenance with ease.
Detailed Data:
SPECIFICATION
Line pull:7,485kgs/16,500lbs
Motor: 12V/6.0HP 24V/3.6HP
Gear Train: Three stage
Gear Ratio: 315:1
Freespooling Clutch: Rotating ring gear
Synthetic Rope Size: Φ7/16"×83'(Φ11mm×25m)
Drum Size: Φ3.5"×8.1"(Φ89mm×206mm)

LINE PULL
Layer of Wire Rope Max Line Pull
1 16,500lbs/7,485kgs
2 12,292lbs/5,576kgs
3 10,413lbs/4,724kgs
4 9,033lbs/4,097kgs

LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
Load Line Speed AMP Draw(12V) AMP Draw(24V)
No Load 18FPM/5.5MPM 65 49
6,000lbs/2,722kgs 6.3FPM/1.9MPM 190 95
10,000lbs/4,536kgs 4.0FPM/1.2MPM 255 195
13,000lbs/5,897kgs 3.4FPM/1.0MPM 330 220
14,500lbs/6,350kgs 2.9FPM/0.9MPM 380 260
16,500lbs/7,484kgs 2.1FPM/0.6MPM 400 290

DIMENSIONS(mm)



STANDARD ACCESSORIES
Controller                   TA-0906
Control Unit                TA-0911
Mounting Hardware
Handsaver Strap
Hook                           TA-0402

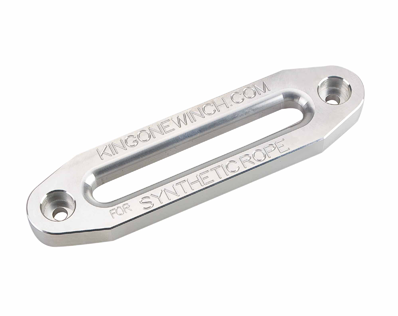

Hawse fairlead            TA-0921
Synthetic Rope            TA-1108

PACKAGE
Winch weight : 46.9kgs/103.2lbs
Gross Weight : 54.2kgs/119.2lbs
Box Dimension : 710×255×450 mm(28"×10"×17.7")
