Entry level-STV
STV-2000
Detailed Data:



SPECIFICATION
Rated line pull: 2000 lbs (906 kgs)
Motor: Permanent magnet DC 12 v motor with 0.85 hp output
Drum size: 1.24" x 2.88"L  (31.5mm x 73mm)
Gear ratio: 153: 1
Dimensions: 11.37" L x 4.72" D x 4.84" H (289mm L x120mm D x123mm H)
Cable Length:49.3ft(L) of Φ5/32"(15M of Φ4mm)
Winch Weight:12Lbs/5.5 Kgs

LINE PULL
Layer of Synthetic Rope Max Line Pull
1 3,000lbs/1,361kgs
2 2,250lbs/1,022kgs
3 1,890lbs/859kgs
4 1,590lbs/722kgs
5 1,370lbs/622kgs
Technical Performance
Load Line Speed AMP Draw(12V)
No Load 10.5FPM/3.2MPM
8
500lbs/227kgs
9.2FPM/2.8MPM
30
1000lbs/454kgs
7.2FPM/2.2MPM 60
1500lbs/680kgs 5.2FPM/1.6MPM 90
2000lbs/907kgs 2.9FPM/0.9MPM  120

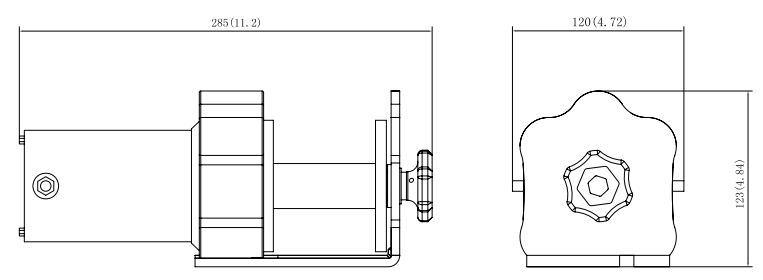

DIMENSIONS(mm)
