TDL

TDL-12.0 i

Detailed Data:

SPECIFICATION

Rated line pull: 1,2000 lbs (5,244 kgs)

Gear Ratio: 254:1

Motor: DC 12 V /6.0HP

DC 24V /3.6HP

Wire Rope Size φ3.8×90〃(φ9.5mm×27M)

Synthetic Rope Size: 24.09〃L×6.49〃D×12.87〃H

Drum Size: (612mm L×165mm D×327mm H)

Drum Diameter: 63.5mm×229mm

LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
Load	Line Speed	AMP Draw(12V)	AMP Draw(24V)
No Load	29.3MPM/9FPM	60	40
4,000lbs/1,814kgs	9.8MPM/3.0FPM	141	110
8,000lbs/3,650kgs	6.9MPM/2.1FPM	224	165
1,2000lbs/5,442kgs	4.5MPM/1.4FPM	285	217

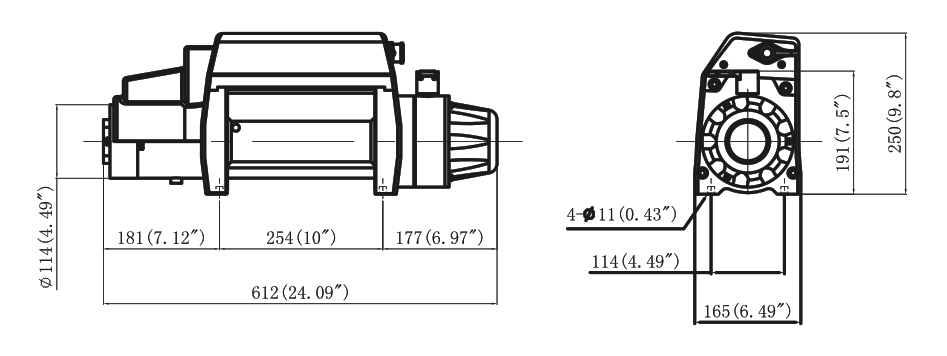

DIMENSIONS(mm)

STANDARD ACCESSORIES

Controller

Control Unit

Mounting Hardware

Handsaver Strap

Synthetic Rope

Hawse Fairlead

Hook

PACKAGE

Winch weight : kgs

Gross Weight : kgs

Box Dimension : × × mm( "× "× ")
