TDL

TDL-9.5i

Detailed Data:

SPECIFICATION

Rated line pull: 9,500\ lbs (4,309 kgs)

Gear Ratio: 173:1

Motor: DC 12 V /5.0HP

DC 24V /3.0HP

Wire Rope Size φ11/32〃×100〃(φ8.7mm×30M)

Synthetic Rope Size: 24.09〃L×6.49〃D×12.87〃H

Drum Size: (612mm L×165mm D×327mm H)

Drum Diameter: 63.5mm×229mm

LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
Load	Line Speed	AMP Draw(12V)	AMP Draw(24V)
No Load	55.8MPM/17FPM	60	40
2,000lbs/907kgs	14.7MPM/4.5FPM	141	106
6,000lbs/2,722kgs	8.9MPM/2.7FPM	248	187
9,500lbs/4,309kgs	7.5MPM/2.3FPM	338	259

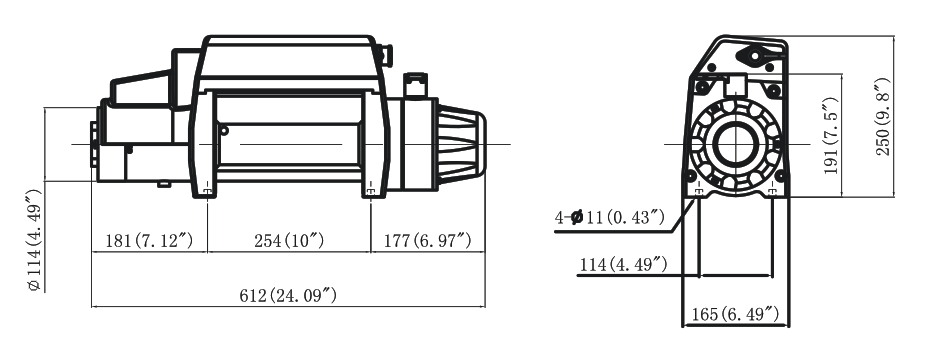

DIMENSIONS(mm)

STANDARD ACCESSORIES

Controller

Control Unit

Mounting Hardware

Handsaver Strap

Synthetic Rope

Hawse Fairlead

Hook

PACKAGE

Winch weight : kgs

Gross Weight : kgs

Box Dimension : × × mm( "× "× ")
