Entry level-STV
STV-3000
Detailed Data:



SPECIFICATION
Rated line pull: 3000 lbs (1361 kgs)
Motor: Permanent magnet DC 12 v motor with 1.2 hp output
Drum size: 1.24" x 2.88"L  (31.5mm x 73mm）
Gear ratio: 153: 1
Dimensions: 11.37" L x 4.72" D x 4.84" H (289mm L x120mm D x123mm H)
Cable Length:30.1ft(L) of Φ11/51"(9.2M of Φ5.5mm)
Winch Weight:14.3 Lbs/6.5 Kgs

LINE PULL
Layer of Synthetic Rope Max Line Pull
1 3,000lbs/1,361kgs
2 2,250lbs/1,022kgs
3 1,890lbs/859kgs
4 1,590lbs/722kgs
5 1,370lbs/622kgs
Technical Performance
Load Line Speed AMP Draw(12V)
No Load 10.5FPM/3.2MPM
 10
1000lbs/454kgs
 7.5FPM/2.3MPM
 40
2000lbs/906kgs
 4.2FPM/1.3MPM 90
 3000lbs/1361kgs  2.3FPM/0.7MPM  145

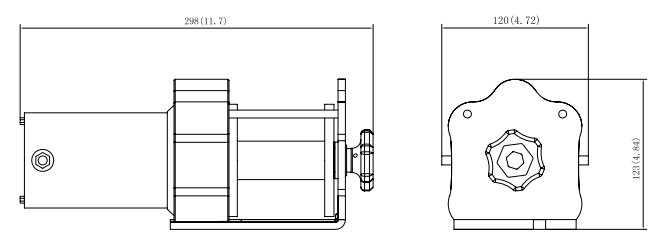

DIMENSIONS(mm)
