Standard-ORCA
ORCA 13.0
  • Heavy duty series wound motor delivers superior torque output and faster line speed.
  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
  • Automatic,double cone brake.
  • Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
  • Installation ,operation and maintenance with ease.
Detailed Data:
SPECIFICATION
Line pull:5,897kgs/13,000lbs
Motor: 12V/24V series wound
Brake: 100% full load double cone braking
Gear Ratio: 206:1
Wire Rope Size:Φ9.5mmx27M(Φ3/8"x90')

LINE PULL
Layer of Wire Rope Max Line Pull
1 13,000lbs/5,897kgs
2 10,500lbs/4,763kgs
3 9,300lbs/4,218kgs
4 8200lbs/3720kgs

LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
Load Line Speed AMP Draw(12V) AMP Draw(24V)
No Load 36FPM/11MPM 65 40
6,000lbs/2,722kgs 11.5FPM/3.5MPM 220 120
11,000lbs/4990kgs 5.6FPM/1.7MPM 340 170
13,000lbs/5,897kgs 3.7FPM/1.13MPM 395 205

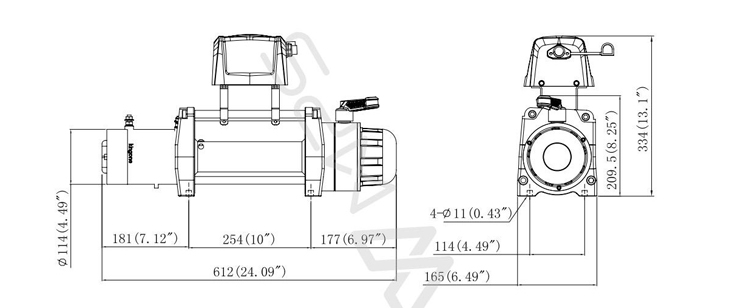

DIMENSIONS(mm)

STANDARD ACCESSORIES

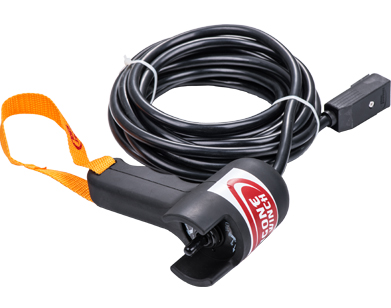

Controller
Wire Rope With Hook
4 Way Roller Fairlead
Control Unit
Mounting Hardware
Handsaver Strap

PACKAGE
Winch weight : 44kgs
Gross Weight : 46kgs
Box Dimension : 647×198×410 mm(25.5"×7.8"×16.1")
