Standard-ORCA
ORCA 9.0
  • Heavy duty series wound motor delivers superior torque output and faster line speed.
  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
  • Automatic,double cone brake.
  • Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
  • Installation ,operation and maintenance with ease.
Detailed Data:
SPECIFICATION
Line pull:4,082kgs/9,000lbs
Motor: 12V/24V series wound
Brake: 100% full load double cone braking
Gear Ratio: 243:1
Wire Rope Size:Φ8mmx30M(Φ5/16"x100')

LINE PULL
Layer of Wire Rope Max Line Pull
1 9,000lbs/4083kgs
2 7370lbs/3342kgs
3 6230lbs/2852kgs
4 5390lbs/2447kgs

LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
Load Line Speed AMP Draw(12V) AMP Draw(24V)
No Load 34.4FPM/10.5MPM 65 40
2,000lbs/907kgs 23.6FPM/7.2MPM 135 85
9,000lbs/4,083kgs 5.9FPM/1.8MPM 405 215

DIMENSIONS(mm)

STANDARD ACCESSORIES

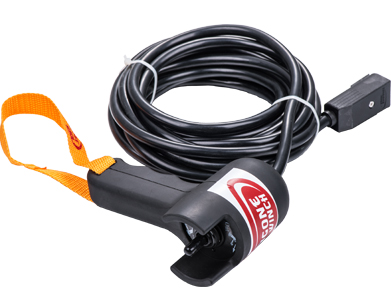

Controller
Wire Rope With Hook
4 Way Roller Fairlead

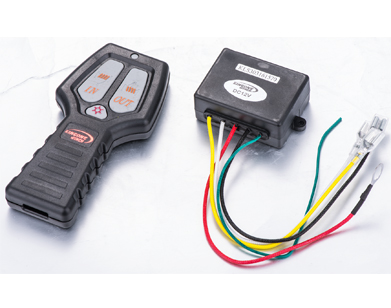

Control Unit
Mounting Hardware
Handsaver Strap

PACKAGE
Winch weight : 43kgs
Gross Weight : 45kgs
Box Dimension : 647×198×410 mm(25.5"×7.8"×16.1")
