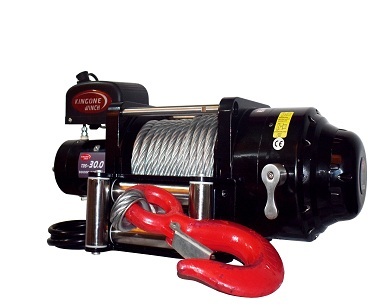

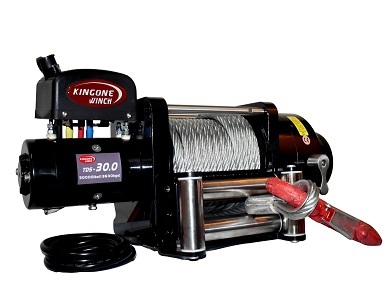

| TDS-30.0 |
|
|
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,double cone brake.
- Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
|
|
|
|
|
| SPECIFICATION |
| Working Load:13,600kgs/29,982.87lbs |
| Wire Rope Size: Φ3/5"×65.6'(Φ14mmx20m) |
| Gear Ratio: 455.5:1 |
| Motor: 12V/6.5HP 24V/4.8HP |
|
| LINE PULL |
| Layer of Wire Rope |
Max Line Pull |
| 1 |
29,982.87lbs/13,600kgs |
| 2 |
23,809.92lbs/10,800kgs |
| 3 |
19,841.6lbs/9,000kgs |
| 4 |
15,432.36lbs/7,000kgs |
|
| LINE SPEED AND AMP DRAW(1st layer of rope on the drum) |
| Load |
Line Speed |
AMP Draw(12V) |
AMP Draw(24V) |
| No Load |
15.7FPM/4.8MPM |
60 |
35 |
| 13,228lbs/6,000kgs |
4.9FPM/1.5MPM |
200 |
110 |
| 22,046lbs/10,000kgs |
3.3FPM/1.0MPM |
275 |
150 |
| 26,455lbs/12,000kgs |
2.6FPM/0.8MPM |
330 |
180 |
| 28,660lbs/13,000kgs |
2.1FPM/0.65MPM |
390 |
210 |
| 30,865lbs/14,000kgs |
1.8FPM/0.55MPM |
420 |
230 |
|
| |

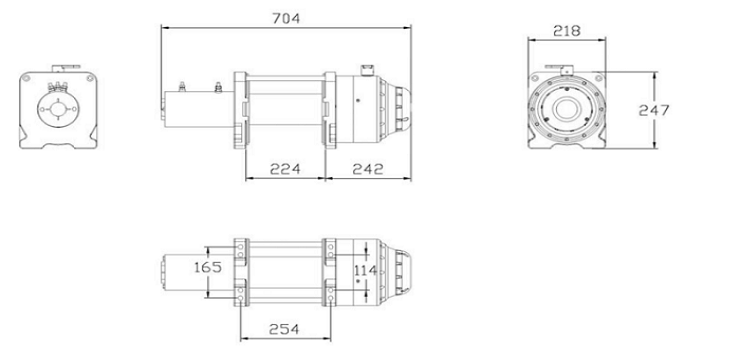

| DIMENSIONS(mm) |
 |
| |
| STANDARD ACCESSORIES |
| Controller |
| Control Unit |
| Mounting Hardware |
| Handsaver Strap |
| 4 Way Roller Fairlead |
| Wire Rope |
| Hook |
| |
| PACKAGE |
| Winch weight : 100kgs/220.46lbs |
| Gross Weight : 125kgs/275.58lbs |
|
| |
|
| |
|
|
