Standard-TDS
TDS-12.0C

  • Heavy duty series wound motor delivers superior torque output and faster line speed.
  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
  • Automatic,double cone brake.
  • Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
  • Installation ,operation and maintenance with ease.

    Detailed Data:
    SPECIFICATION
    Line pull:5,442kgs/12,000lbs
    Motor: 12V/6.0HP 24V/3.6HP
    Gear Train: Three stage
    Gear Ratio254:1
    Freespooling Clutch: Rotating ring gear
    Wire Rope Size: Φ3/8"×90'(Φ9.5mm×27.4m)
    Wire Rope Type: Aircraft A7×19
    Drum Size: Φ2.5"×9"(Φ63.5mm×229mm)

    LINE PULL
    Layer of Wire Rope Max Line Pull
    1 12,000lbs/5,442kgs
    2 9,789lbs/4,445kgs
    3 8,273lbs/3,760kgs
    4 7,199lbs/3,255kgs

    LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
    Load Line Speed AMP Draw(12V) AMP Draw(24V)
    No Load 29.3FPM/9MPM 60 40
    2,000lbs/907kgs 13FPM/4MPM 116 87
    4,000lbs/1,814kgs 9.8FPM/3MPM 141 110
    6,000lbs/2,722kgs 7.9FPM/2.4MPM 178 129
    8,000lbs/3,650kgs 6.9FPM/2.1MPM 224 165
    9,500lbs/4,309kgs 6.2FPM/1.9MPM 238 185
    11,000lbs/5,000kgs 4.9FPM/1.5MPM 270 214
    12,000lbs/5,442kgs 4.5FPM/1.4MPM 285 217

    DIMENSIONS(mm)



    STANDARD ACCESSORIES

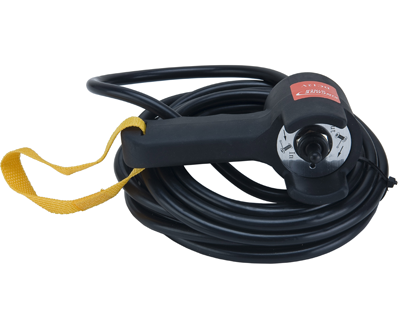

    Controller                      TA-0906
    Wire Rope With Hook

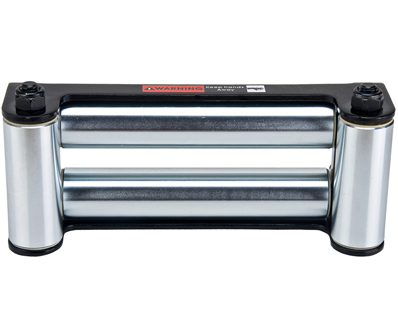

    4 Way Roller Fairlead    TA-0903
    Control Unit                   TA-0910/12V     TA-0910/24V
    Mounting Hardware
    Handsaver Strap


    PACKAGE
    Winch weight : 43kgs/94.6lbs
    Gross Weight : 45kgs/99lbs
    Box Dimension : 647×198×440 mm(25.5"×7.8"×17.3")
