| TDS-6.5 |
|
|
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,double cone brake.
- Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
|
|
|
|
|
| SPECIFICATION |
| Line pull:2,955kgs/6,500lbs |
| Motor: 12V/4.0HP |
| Gear Train: Three stage |
| Gear Ratio: 173:1 |
| Freespooling Clutch: Rotating ring gear |
| Wire Rope Size: Φ5/16"×80'(Φ8.0mm×24.3m) |
| Wire Rope Type: Aircraft A7×19 |
| Drum Size: Φ2.5"×9"(Φ63.5mm*229mm) |
|
| LINE PULL |
| Layer of Wire Rope |
Max Line Pull |
| 1 |
6,500lbs/2,955kgs |
| 2 |
5,000lbs/2,300kgs |
| 3 |
4,300lbs/2,000kgs |
| 4 |
3,800lbs/1,700kgs |
|
| LINE SPEED AND AMP DRAW(1st layer of rope on the drum) |
| Load |
Line Speed |
AMP Draw(12V) |
| No Load |
59FPM/16MPM |
70 |
| 2,000lbs/907kgs |
16.4FPM/5MPM |
150 |
| 4,000lbs/1,814kgs |
13FPM/4MPM |
240 |
| 6,500lbs/2,955kgs |
8.2FPM/2.5MPM |
380 |
|
| |
| DIMENSIONS(mm) |
| |
|
| |
| STANDARD ACCESSORIES |
| Controller TA-0906 |
| Wire Rope With Hook |

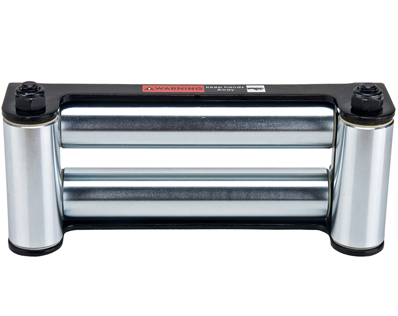

| 4 Way Roller Fairlead TA-0903 |
| Control Unit TA-0909/12V |
| Mounting Hardware |
Handsaver Strap
|
|
| |
| PACKAGE |
| Winch weight : 40kgs/88lbs |
| Gross Weight : 42kgs/92.4lbs |
| Box Dimension : 647×198×410 mm(25.5"×7.8"×16.1") |
| |
|
| |
|
|
