| KDS-10.0C |
|
|
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Braking by flanges transmission.
- Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
- It's total length is 544mm(21.4").
|
|
|
|
|
| SPECIFICATION |
| Line pull:4,536kgs/10,000lbs |
| Motor: 12V/5.0HP 24V/3.2HP |
| Gear Train: Three stage |
| Gear Ratio: 173:1 |
| Brake: Flanges brake |
| Freespooling Clutch: Rotating ring gear |
| Wire Rope Size: Φ11/32"×100'(Φ8.7mm×30m) |
| Wire Rope Type: Aircraft A7×19 |
| Drum Size: Φ2.5"×9"(Φ63.5mm×229mm) |
|
| LINE PULL |
| Layer of Wire Rope |
Max Line Pull |
| 1 |
10,000lbs/4,536kgs |
| 2 |
8,196lbs/3,718kgs |
| 3 |
6,888lbs/3,124kgs |
| 4 |
5,990lbs/2,717kgs |
|
| LINE SPEED AND AMP DRAW(1st layer of rope on the drum) |
| Load |
Line Speed |
AMP Draw(12V) |
AMP Draw(24V) |
| No Load |
47.5FPM/14.5MPM |
60 |
40 |
| 2,000lbs/907kgs |
14FPM/4.3MPM |
150 |
110 |
| 4,000lbs/1,814kgs |
12FPM/3.6MPM |
181 |
158 |
| 6,000lbs/2,722kgs |
10FPM/3.0MPM |
250 |
190 |
| 8,000lbs/3,650kgs |
8.2FPM/2.5MPM |
300 |
230 |
| 10,000lbs/4,536kgs |
7FPM/2.1MPM |
350 |
270 |
|
| |
| DIMENSIONS(mm) |
| |
|
| |
| STANDARD ACCESSORIES |
| Controller TA-0906 |
| Wire Rope With Hook |

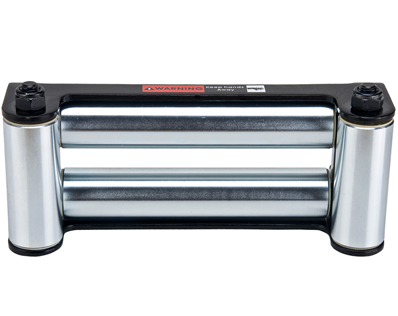

| 4 Way Roller Fairlead TA-0903 |

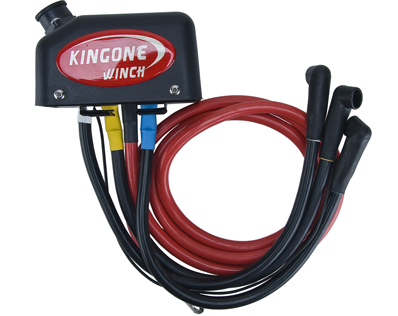

| Control Unit TA-0910 |
| Mounting Hardware |
| Handsaver Strap |
| |
| PACKAGE |
| Winch weight : 40kgs/88lbs |
| Gross Weight : 44.8kgs/98.6lbs |
| Box Dimension : 580×198×450 mm(22.8"×7.8"×17.7") |
| |
|
| |
|
|
