| KDS-9.0 |
|
|
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Braking by flanges transmission.
- Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
- It's total length is 520mm(20.5").
|
|
|
|
|
| SPECIFICATION |
| Line pull:4,083kgs/9,000lbs |
| Motor: 12V/4.8HP |
| Gear Train: Three stage |
| Gear Ratio: 254:1 |
| Brake: Flanges brake |
| Freespooling Clutch: Rotating ring gear |
| Wire Rope Size: Φ5/16"×100'(Φ8.0mm×30m) |
| Wire Rope Type: Aircraft A7×19 |
| Drum Size: Φ2.5"×9"(Φ63.5mm×229mm) |
|
| LINE PULL |
| Layer of Wire Rope |
Max Line Pull |
| 1 |
9,000lbs/4,083kgs |
| 2 |
7,370lbs/3,342kgs |
| 3 |
6,230lbs/2,825kgs |
| 4 |
5,390lbs/2,447kgs |
|
| LINE SPEED AND AMP DRAW(1st layer of rope on the drum) |
| Load |
Line Speed |
AMP Draw(12V) |
| No Load |
34FPM/10.1MPM |
65 |
| 2,000lbs/907kgs |
20FPM/6.1MPM |
130 |
| 4,000lbs/1,814kgs |
17FPM/5.2MPM |
200 |
| 6,000lbs/2,722kgs |
13FPM/4.0MPM |
320 |
| 9,000lbs/3,629kgs |
6.5FPM/2.0MPM |
400 |
|
| |
| DIMENSIONS(mm) |
| |
|
| |
| STANDARD ACCESSORIES |

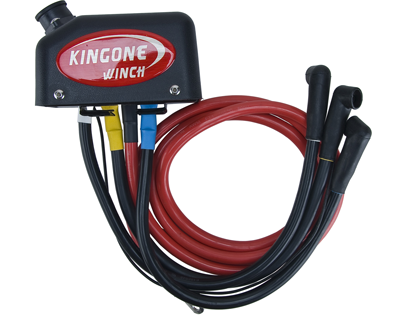

| Controller TA-0906 |
| Wire Rope With Hook |

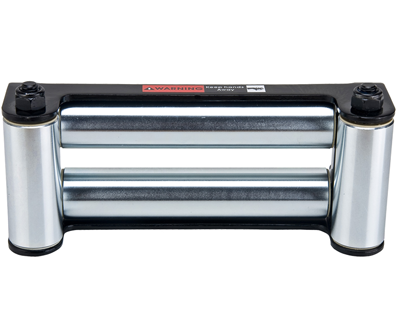

| 4 Way Roller Fairlead TA-0903 |
| Control Unit TA-0909 |
| Mounting Hardware |
| Handsaver Strap |
| |
| PACKAGE |
| Winch weight : 39kgs/85.8lbs |
| Gross Weight : 44.5kgs/97.9lbs |
| Box Dimension : 560×198×405 mm(22"×7.8"×16") |
| |
|
| |
|
|
