Standard-TDS
TDS-20.0C

  • Heavy duty series wound motor delivers superior torque output and faster line speed.
  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
  • Automatic,double cone brake.
  • Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
  • Installation ,operation and maintenance with ease.

    Detailed Data:
    SPECIFICATION
    Working Load:9072kgs/20,000lbs
    Wire Rope Size: Φ8/17"×83'(Φ12mmx25m)
    Gear Ratio: 315:1
    Motor: 12V/6.2HP 24V/4.0HP

    LINE PULL
    Layer of Wire Rope Max Line Pull
    1 20,000lbs/9,072kgs
    2 15,380lbs/6,976kgs
    3 13,100lbs/5,942kgs
    4 11,300lbs/5,125kgs

    LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
    Load Line Speed AMP Draw(12V) AMP Draw(24V)
    No Load 26.2FPM/8MPM 60 30
    2,000lbs/907kgs 23.3FPM/4.2MPM 100 60
    4,000lbs/1,814kgs 10.5FPM/3.19MPM 125 85
    6,000lbs/2,721kgs 9.2FPM/2.8MPM 155 110
    8,000lbs/3,628kgs 8.2FPM/2.5MPM 180 130
    10,000lbs/4,536kgs 6.6FPM/2.0MPM 215 155
    12,500lbs/5,670kgs 6.3FPM/1.92MPM 250 165
    14,000lbs/6,350kgs 5.9FPM/1.79MPM 270 175
    16,500lbs/7,484kgs 5.5FPM/1.67MPM 290 190
    18,000lbs/8,165kgs 4.6FPM/1.41MPM 320 220
    19,000lbs/8,618kgs 3.8FPM/1.16MPM 340 240
    20,000lbs/9,072kgs 3.2FPM/0.97MPM 360 270

    DIMENSIONS(mm)



    STANDARD ACCESSORIES

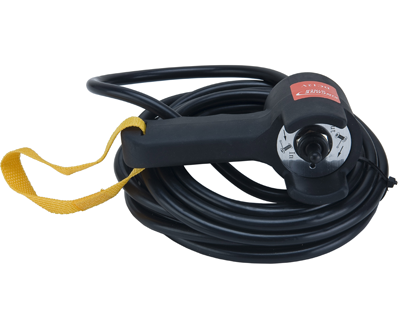

    Controller                     TA-0906
    Control Unit                  TA-0912
    Mounting Hardware
    Handsaver Strap
    4 Way Roller Fairlead   TA-0903
    Wire Rope                    TA-0112
    Hook                            TA-0405

    PACKAGE
    Winch weight : 65.8kgs/144.8lbs
    Gross Weight : 68kgs/150lbs
    Box Dimension : 730×270×420 mm(28"×10.6"×16.5")
