| TDS-16.5 |
|
|
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,double cone brake.
- Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
|
|
|
|
|
| SPECIFICATION |
| Line pull:7,485kgs/16,500lbs |
| Motor: 12V/6.0HP 24V/3.6HP |
| Gear Train: Three stage |
| Gear Ratio: 315:1 |
| Freespooling Clutch: Rotating ring gear |
| Wire Rope Size: Φ7/16"×90'(Φ11mm×27.4m) |
| Wire Rope Type: Aircraft A7×19 |
| Drum Size: Φ3.5"×8.1"(Φ89mm×206mm) |
|
| LINE PULL |
| Layer of Wire Rope |
Max Line Pull |
| 1 |
16,500lbs/7,485kgs |
| 2 |
12,292lbs/5,576kgs |
| 3 |
10,413lbs/4,724kgs |
| 4 |
9,033lbs/4,097kgs |
|
| LINE SPEED AND AMP DRAW(1st layer of rope on the drum) |
| Load |
Line Speed |
AMP Draw(12V) |
AMP Draw(24V) |
| No Load |
18FPM/5.5MPM |
65 |
49 |
| 6,000lbs/2,722kgs |
6.3FPM/1.9MPM |
190 |
95 |
| 10,000lbs/4,536kgs |
4.0FPM/1.2MPM |
255 |
195 |
| 13,000lbs/5,897kgs |
3.4FPM/1.0MPM |
330 |
220 |
| 14,500lbs/6,350kgs |
2.9FPM/0.9MPM |
380 |
260 |
| 16,500lbs/7,484kgs |
2.1FPM/0.6MPM |
400 |
290 |
|
| |
| DIMENSIONS(mm) |
| |
|
| |
| STANDARD ACCESSORIES |

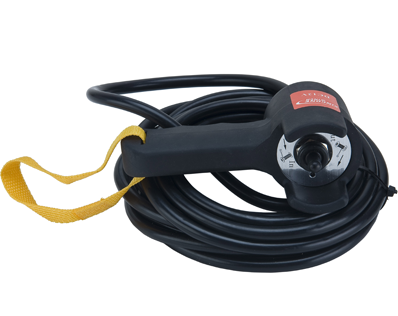

| Controller TA-0906 |

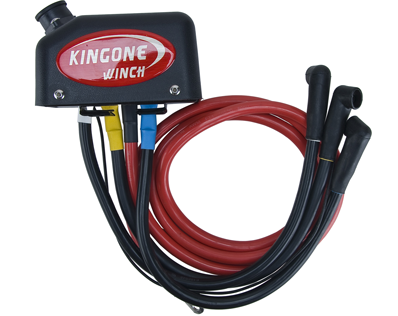

| Control Unit TA-0911 |
| Mounting Hardware |
| Handsaver Strap |
| Wire Rope TA-0111 |
| Hook TA-0402 |
| 4 Way Roller Fairlead TA-0903 |
| |
| PACKAGE |
| Winch weight : 62.5 kgs/137.5lbs |
| Gross Weight : 72.9kgs/160.4lbs |
| Box Dimension : 710×255×450 mm(28"×10"×17.7") |
| |
|
| |
|
|
