| ATV-4000 |
|
|
- Permanent magnet motor delivers superior to rqueoutput and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,flat brake.
- Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
|
|
|
|
|
| SPECIFICATION |
| Line pull:1,814kgs/4,000lbs |
| Motor: 12V/1.6HP 24V/1.0HP |
| Gear Train: Three stage |
| Gear Ratio: 187:1 |
| Freespooling Clutch: Rotating ring gear |
| Wire Rope Size: Φ7/32"x50'(Φ5.5mmx15m) |
| Wire Rope Type: Aircraft A7X19 |
| Drum Size: Φ2.3"x5.2"(Φ59mmx131.5mm) |
|
| LINE PULL |
| Layer of Wire Rope |
Max Line Pull |
| 1 |
4,000lbs/1,814kgs |
| 2 |
3,735lbs/1,694kgs |
| 3 |
3,188lbs/1,446kgs |
| 4 |
2,780lbs/1,261kgs |
|
| LINE SPEED AND AMP DRAW(1st layer of rope on the drum) |
| Load |
Line Speed |
AMP Draw(12V) |
AMP Draw(24V) |
| No Load |
24FPM/7.3MPM |
55 |
49 |
| 500lbs/230kgs |
6.6FPM/2.0MPM |
210 |
172 |
| 1,000lbs/450kgs |
4.0FPM/1.2MPM |
290 |
260 |
| 1,500lbs/680kgs |
2.6FPM/0.8MPM |
350 |
310 |
| 2,000lbs/900kgs |
2.6FPM/0.8MPM |
350 |
310 |
|
| |
| DIMENSIONS(mm) |
| |
|
| |
| STANDARD ACCESSORIES |

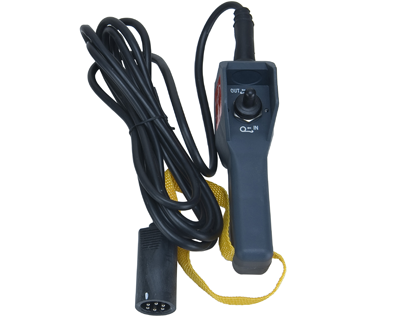

| Controller TA-0508 |

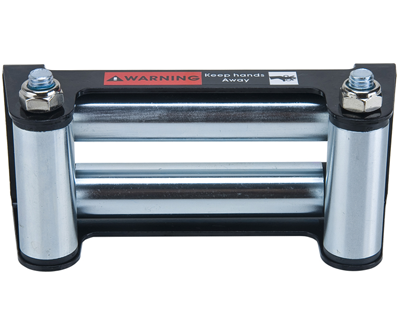

| 4 Way Roller Fairlead TA-0905 |
| Control unit TA-0512 |
| Mounting hardware |
| Handsaver Strap |
| Wire Rope With Hook |

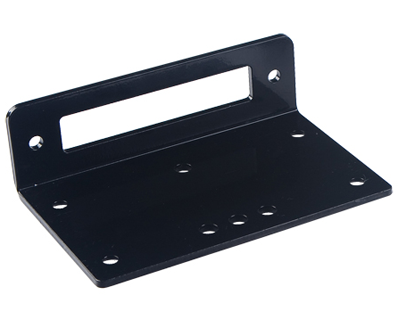

| Base Frame TA-0304 |
|
| |
| PACKAGE |
| Winch Weight : 14.98kgs/33lbs |
| Gross Weight : 16.97kgs/37.3lbs |
| Box Dimension : 430×225×257 mm(16.9"×8.9"×10.1") |
| |
|
| |
|
|
