| KHD-8 SR |
|
|
- Smooth running over the entire speed range.
- Highly efficient, constant operating torque motor.
- Rotating ring gear frees pooling clutch is a pull and turn design for rapid wire rope payout.
- Freespooling. Power in/out. Mechanical lock. Stainless steel tie bars . Reversible mounting.
- Variable speed hydraulic winch.
|
|
|
|
|
| SPECIFICATION |
| Line pull:605kgs/1,333lbs(HIGH) 3,629kgs/8,000lbs(LOW) |
| Operation Pressure: 175bar/2537psi |
| Max Oil Flow: 15.9g/min(60l/min) |
| Gear Ratio: FREE 1:1(HIGH) 6:1(LOW) |
| Synthetic Rope Size: Φ11/31"×100'(Φ9.0mm×30m) |
| Drum Size: Φ2.5"×8.4"(Φ63.5mm×215mm) |
| Gear Train: Planetary |
|
| LINE PULL AND LINE SPEED(1st layer of Synthetic Rope on the drum)(please use under when the max line pull is 8,000lbs,pressure is 175 bar and flow is 30l/min.) |
| Layer of Wire Rope |
Max Line Pull(1:1) |
Line Speed(1:1) |
Max Line Pull(6:1) |
Line Speed(6:1) |
| 1 |
1,333lbs/650kgs |
160FPM/49MPM |
8,000lbs/3,629kgs |
26.6FPM/8.1MPM |
| 2 |
1,120lbs/500kgs |
190FPM/58MPM |
6,700lbs/3,030kgs |
31.8FPM/9.7MPM |
| 3 |
992lbs/450kgs |
213FPM/65MPM |
5,900lbs/2,670kgs |
36FPM/11MPM |
| 4 |
860lbs/390kgs |
249FPM/76MPM |
5,100lbs/2,310kgs |
41FPM/12.5MPM |
| 5 |
780lbs/354kgs |
279FPM/85MPM |
4,600lbs/2,080kgs |
46.5FPM/14.2MPM |
|
| |
| DIMENSIONS(mm) |
| |
|
| |
| STANDARD ACCESSORIES |

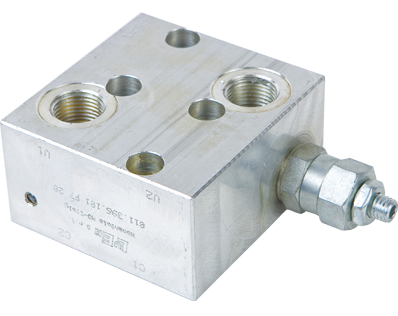

| Over Center Valve TA-0918 |

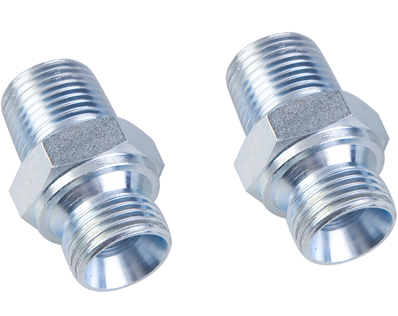

| Coupling TA-0928 |
| Hook TA-0401 |
| Hawse Fairlead TA-0921 |
| Synthetic Rope TA-1106 |
| |
| OPTIONAL ACCESSORIES |
| High Pressure Hose TA-0929 |
| Base Plate TA-0927 |
| |
| PACKAGE |
| Winch weight : 31kgs/68.3lbs |
| Gross Weight : 36kgs/79.4lbs |
| Box Dimension : 570×245×305 mm(22.4"×9.6"×12") |
| |
|
| |
|
|
