Premium-ATV
ATV-3000C SR

  • Permanent magnet motor delivers superior torque output and faster line speed.
  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
  • Automatic,flat brake.
  • Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
  • Installation ,operation and maintenance with ease.

Detailed Data:
SPECIFICATION
Line pull:1,363kgs/3,000lbs
Motor: 12V/1.0HP 24V/0.8HP
Gear Train: Three stage
Gear Ratio166:1
Freespooling Clutch: Rotating ring gear
Synthetic Rope Size: Φ3/18"×50'(Φ4.0mm×15m)
Drum Size: Φ2.2"×3.4"(Φ55mm×87.5mm)

LINE PULL
Layer of Synthetic Rope Max Line Pull
1 3,000lbs/1,363kgs
2 2,590lbs/1,170kgs
3 2,270lbs/1,030kgs
4 2,030lbs/920kgs
5 1,830lbs/830kgs

LINE SPEED AND AMP DRAW(1st layer of Synthetic Rope on the drum)
Load Line Speed AMP Draw(12V) AMP Draw(24V)
No Load 24FPM/7.3MPM 25 13
500lbs/230kgs 19FPM/6MPM 50 27
1,000lbs/450kgs 15FPM/4.6MPM 85 45
1,500lbs/680kgs 13.5FPM/4.2MPM 105 53
2,000lbs/900kgs 11.4FPM/3.5MPM 118 60
2,500lbs/1,140kgs 10.2FPM/3.1MPM 160 90
3,000lbs/1,363kgs 8.2FPM/2.5MPM 188 110

DIMENSIONS(mm)



STANDARD ACCESSORIES

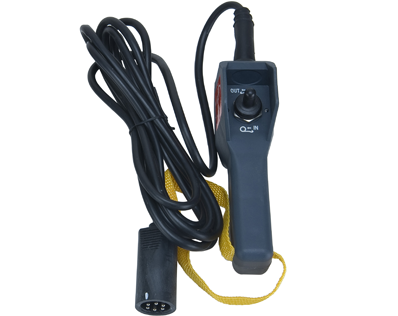

Controller                      TA-0508

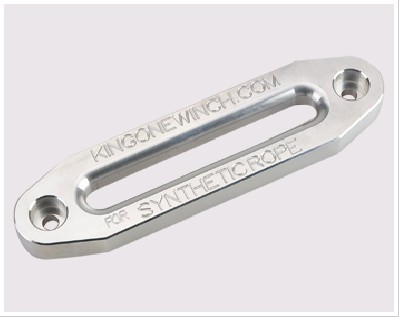

Hawse fairlead              TA-0923
Control Unit                   TA-0510
Handsaver Strap

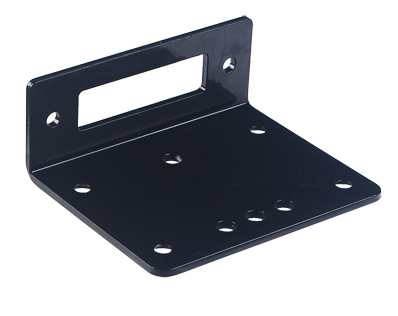

Base Frame                   TA-0303
Mounting Hardware
Synthetic Rope With Hook

PACKAGE
Winch Weight : 9.67kgs/21.3lbs
Gross Weight : 11.64kgs/25.6lbs
Box Dimension : 390×209×235 mm(15.4"×8.2"×9.3")
