| ATV-4000C SR |
|
|
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gear box delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,double cone brake.
- Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
|
|
|
|
|
| SPECIFICATION |
| Line pull:1,814kgs/4,000lbs |
| Motor: 12V/1.6HP 24V/1.0HP |
| Gear Train: Three stage |
| Gear Ratio: 187:1 |
| Freespooling Clutch: Rotating ring gear |
| Synthetic Rope Size: Φ6/31"×50'(Φ4.9mm×15m) |
| Drum Size: Φ2.3"×5.2"(Φ59mm×131.5mm) |
|
| LINE PULL |
| Layer of Synthetic Rope |
Max Line Pull |
| 1 |
4,000lbs/1,814kgs |
| 2 |
3,735lbs/1,694kgs |
| 3 |
3,188lbs/1,446kgs |
| 4 |
2,780lbs/1,261kgs |
|
| LINE SPEED AND AMP DRAW(1st layer of Synthetic Rope on the drum) |
| Load |
Line Speed |
AMP Draw(12V) |
AMP Draw(24V) |
| No Load |
19FPM/5.8MPM |
25 |
13 |
| 500lbs/230kgs |
12.8FPM/3.9MPM |
45 |
26 |
| 1,000lbs/450kgs |
11.2FPM/3.4MPM |
80 |
45 |
| 1,500lbs/680kgs |
10.2FPM/3.1MPM |
120 |
60 |
| 2,000lbs/900kgs |
9.5FPM/2.9MPM |
160 |
89 |
| 2,500lbs/1,140kgs |
9.0FPM/2.7MPM |
210 |
120 |
| 3,000lbs/1,363kgs |
7.9FPM/2.4MPM |
235 |
130 |
| 3,500lbs/1,588kgs |
7.2FPM/2.2MPM |
250 |
135 |
| 4,000lbs/1,814kgs |
6.6FPM/2.0MPM |
278 |
145 |
|
| |
| DIMENSIONS(mm) |
| |
|
| |
| STANDARD ACCESSORIES |

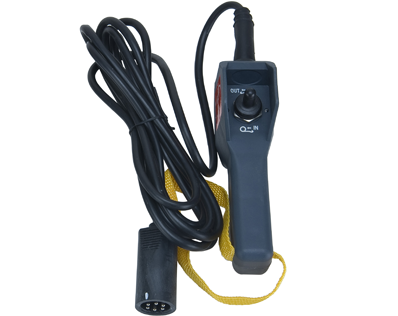

| Controller TA-0508 |

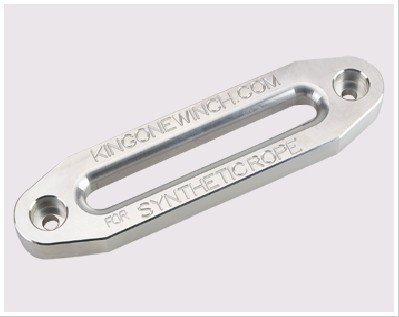

| Hawse fairlead TA-0924 |
| Control Unit TA-0511 |
| Handsaver Strap |

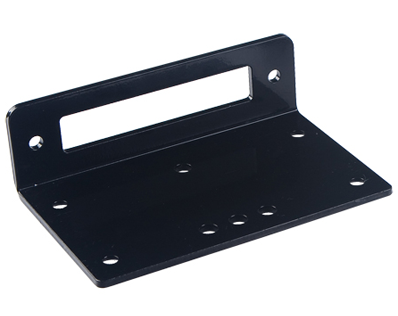

| Base Frame TA-0304 |
| Mounting Hardware |
| Synthetic Rope With Hook |
|
| |
| PACKAGE |
| Winch Weight : 9.66kgs/21.3lbs |
| Gross Weight : 11.65kgs/25.6lbs |
| Box Dimension : 430×225×235 mm(16.9"×8.9"×9.3") |
| |
|
| |
|
|
