| TDS-16.5C SR |
|
|
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,double cone brake.
- Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
|
|
|
|
|
| SPECIFICATION |
| Line pull:7,485kgs/16,500lbs |
| Motor: 12V/6.0HP 24V/3.6HP |
| Gear Train: Three stage |
| Gear Ratio: 315:1 |
| Freespooling Clutch: Rotating ring gear |
| Synthetic Rope Size: Φ7/16"×83'(Φ11mm×25m) |
| Drum Size: Φ3.5"×8.1"(Φ89mm×206mm) |
|
| LINE PULL |
| Layer of Synthetic Rope |
Max Line Pull |
| 1 |
16,500lbs/7,485kgs |
| 2 |
12,292lbs/5,576kgs |
| 3 |
10,413lbs/4,724kgs |
| 4 |
9,033lbs/4,097kgs |
|
| LINE SPEED AND AMP DRAW(1st layer of Synthetic Rope on the drum) |
| Load |
Line Speed |
AMP Draw(12V) |
AMP Draw(24V) |
| No Load |
18FPM/5.5MPM |
65 |
49 |
| 6,000lbs/2,722kgs |
6.3FPM/1.9MPM |
190 |
95 |
| 10,000lbs/4,536kgs |
4.0FPM/1.2MPM |
255 |
195 |
| 13,000lbs/5,897kgs |
3.4FPM/1.0MPM |
330 |
220 |
| 14,500lbs/6,350kgs |
2.9FPM/0.9MPM |
380 |
260 |
| 16,500lbs/7,484kgs |
2.1FPM/0.6MPM |
400 |
290 |
|
| |
| DIMENSIONS(mm) |
| |
|
| |
| STANDARD ACCESSORIES |
| Controller TA-0906 |
| Control Unit TA-0912/12V TA-0912/24V |
| Mounting Hardware |
| Handsaver Strap |

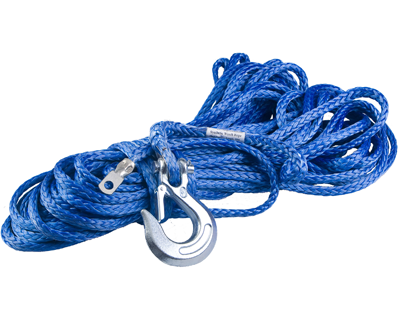

| Synthetic Rope TA-1108 |

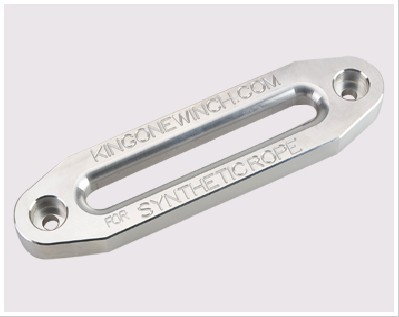

| Hawse fairlead TA-0921 |
| Hook TA-0402 |
| |
| PACKAGE |
| Winch Weight : 49.8kgs/109.6lbs |
| Gross Weight : 57kgs/125.4lbs |
| Box Dimension : 710×270×420 mm(28"×10.6"×16.5") |
| |
|
| |
|
|
