Standard-TDS
TDS-8.5 SR

  • Heavy duty series wound motor delivers superior torque output and faster line speed.
  • 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
  • Automatic,double cone brake.
  • Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
  • Installation ,operation and maintenance with ease.

    Detailed Data:
    SPECIFICATION
    Line pull:3,860kgs/8,500lbs
    Motor: 12V/4.6HP
    Gear Train: Three stage
    Gear Ratio254:1
    Freespooling Clutch: Rotating ring gear
    Synthetic Rope Size: Φ5/16"×100'(Φ8.0mm×30m)
    Drum Size: Φ2.5"×9"(Φ63.5mm×229mm)

    LINE PULL
    Layer of Synthetic Rope Max Line Pull
    1 8,500lbs/3,860kgs
    2 6,900lbs/3,200kgs
    3 5,800lbs/2,700kgs
    4 5,000lbs/2,300kgs

    LINE SPEED AND AMP DRAW(1st layer of Synthetic Rope on the drum)
    Load Line Speed AMP Draw(12V)
    No Load 39.4FPM/12MPM 70
    2,000lbs/907kgs 13.8FPM/4.2MPM 130
    4,000lbs/1,814kgs 12.5FPM/3.8MPM 190
    6,500lbs/2,955kgs 11.2FPM/3.4MPM 270
    8,500lbs/3,860kgs 7.9FPM/2.4MPM 352

    DIMENSIONS(mm)



    STANDARD ACCESSORIES

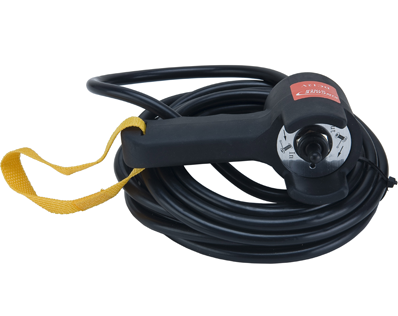

    Controller                     TA-0906
    Synthetic Rope With Hook
    Hawse fairlead             TA-0921
    Control unit                  TA-0909/12V
    Mounting hardware
    Handsaver Strap


    PACKAGE
    Winch Weight : 32kgs/70.6lbs
    Gross Weight : 34kgs/74.8lbs
    Box Dimension : 647×198×410 mm(25.5"×7.8"×16.1")
