| TDS-8.5 |
|
|
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,double cone brake.
- Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
|
|
|
|
| Para obtener más información: |
|
|
| SPECIFICATION |
| Line pull:3,860kgs/8,500lbs |
| Motor: 12V/4.6HP |
| Gear Train: Three stage |
| Gear Ratio: 254:1 |
| Freespooling Clutch: Rotating ring gear |
| Wire Rope Size: Φ5/16"×100'(Φ8.3mm×30m) |
| Wire Rope Type: Aircraft A7X19 |
| Drum Size: Φ2.5"×9"(Φ63.5mm×229mm) |
|
| LINE PULL |
| Layer of Wire Rope |
Max Line Pull |
| 1 |
8,500lbs/3,860kgs |
| 2 |
6,900lbs/3,200kgs |
| 3 |
5,800lbs/2,700kgs |
| 4 |
5,000lbs/2,300kgs |
|
| LINE SPEED AND AMP DRAW(1st layer of rope on the drum) |
| Load |
Line Speed |
AMP Draw(12V) |
| No Load |
39.4FPM/12MPM |
70 |
| 2,000lbs/907kgs |
13.8FPM/4.2MPM |
130 |
| 4,000lbs/1,814kgs |
12.5FPM/3.8MPM |
190 |
| 6,500lbs/2,955kgs |
11.2FPM/3.4MPM |
270 |
| 8,500lbs/3,860kgs |
7.9FPM/2.4MPM |
352 |
|
| |
| DIMENSIONS(mm) |
| |
|
| |
| STANDARD ACCESSORIES |
| Controller TA-0906 |
| Wire Rope With Hook |

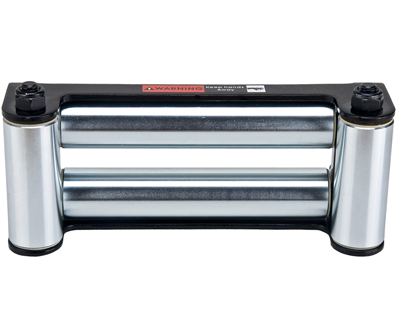

| 4 Way Roller Fairlead TA-0903 |
| Control unit TA-0909 |
| Mounting hardware |
| Pulley Block TA-0109 |
| Handsaver Strap |
| |
| PACKAGE |
| Winch weight : 44kgs/97lbs |
| Gross Weight : 46kgs/101lbs |
| Box Dimension : 647×198×410 mm(25.5"×7.8"×16.1") |
| |
|
| |
|
|
